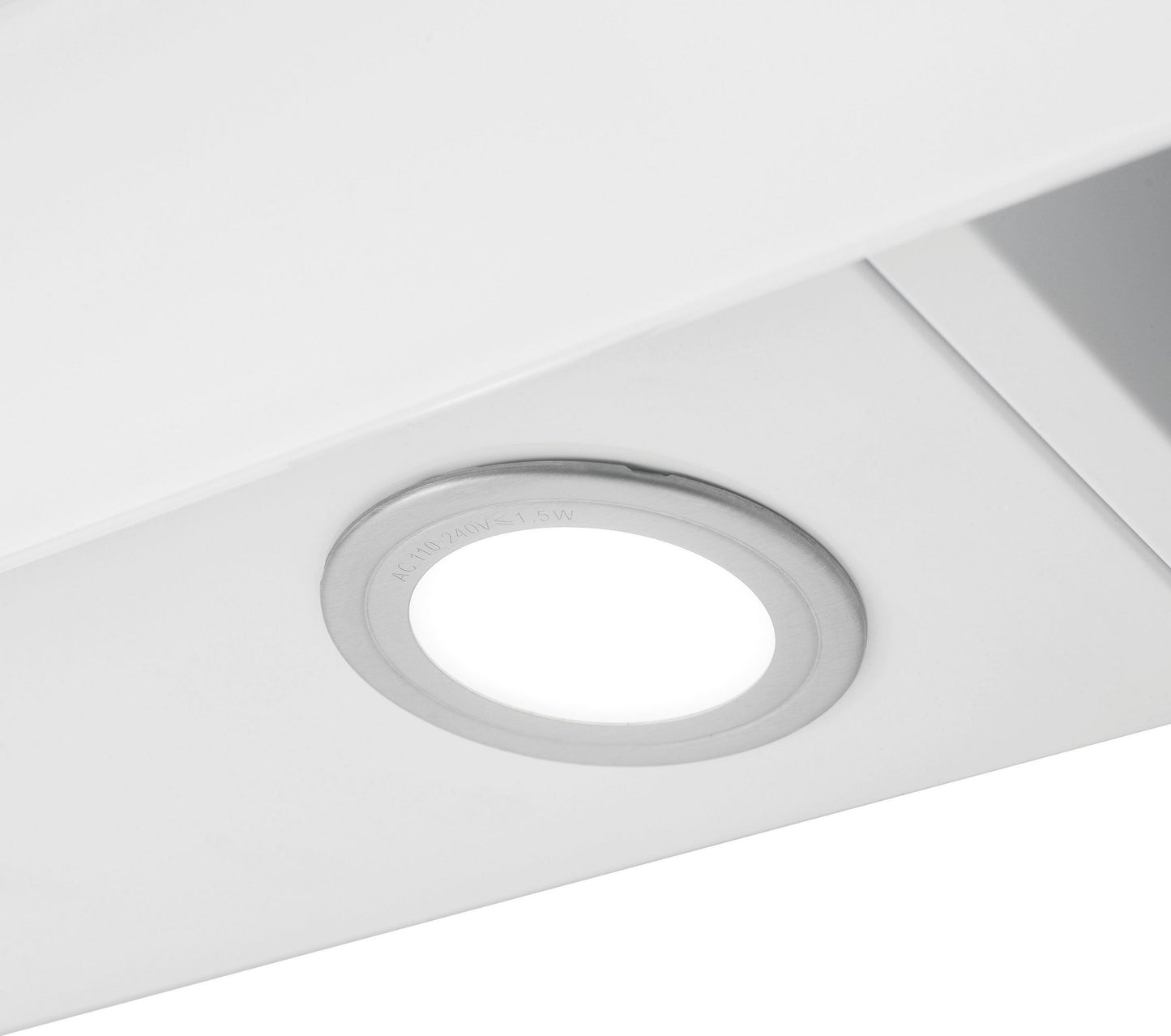

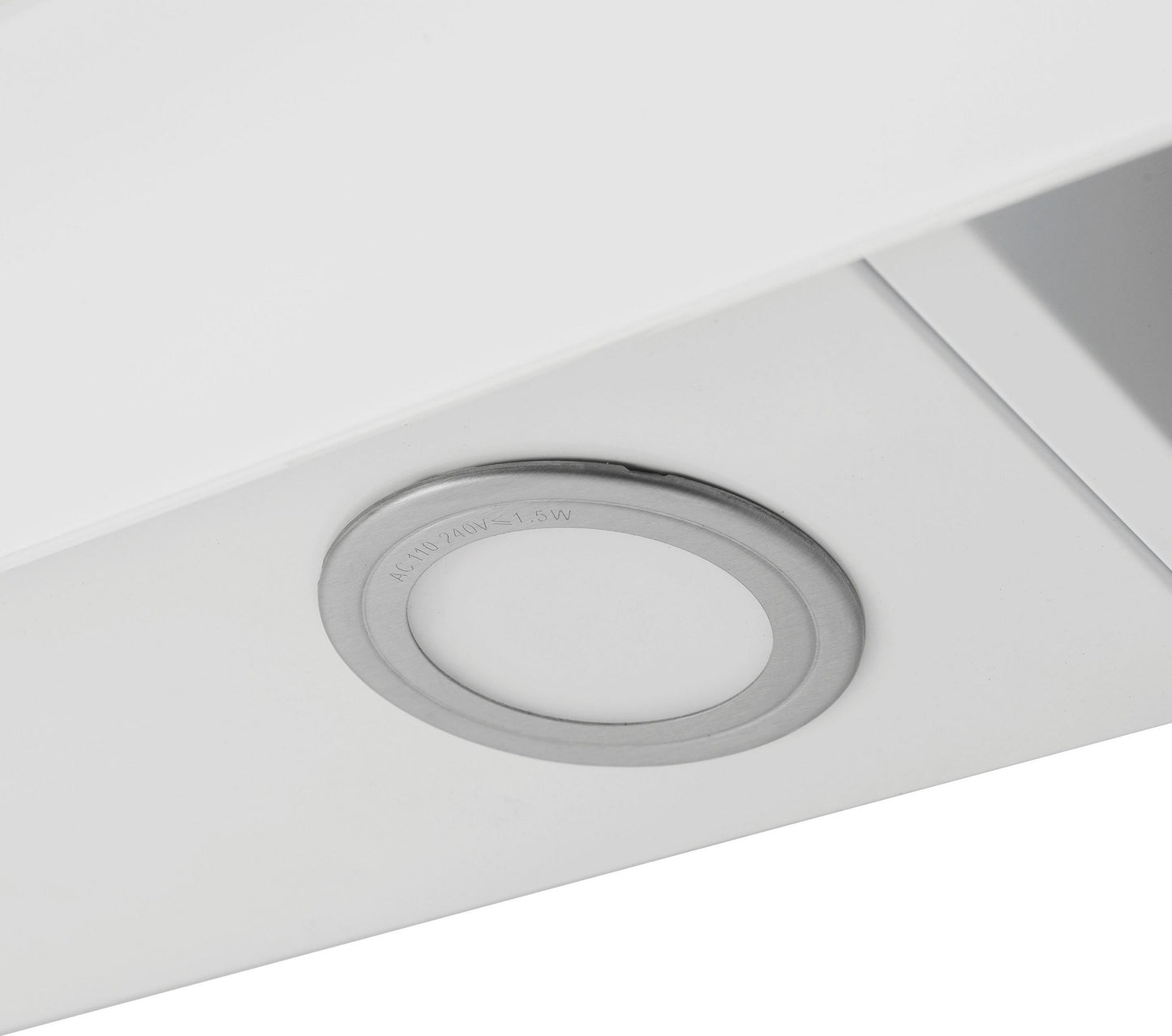

3 power levels LED lighting Push buttons Exhaust air and recirculation operation possible Angled design for more headroom
PRODUCT DETAILS Color white scope of delivery Metal grease filter (washable) 1 x MIZ 7000
PERFORMANCE & CONSUMPTION Model name CH 22010 WBZ Energy consumption / year 35kWh Fluid dynamic efficiency class D Lighting efficiency class A Class for grease separation efficiency D Airflow at min. speed 274.7 m³/h Airflow at max. speed 377 m³/h Sound power level minimum 54 dB(A) Maximum sound power level 62 dB(A) Airborne noise emissions 62 dB(A) Energy efficiency class (scale) B (A+++ to D)

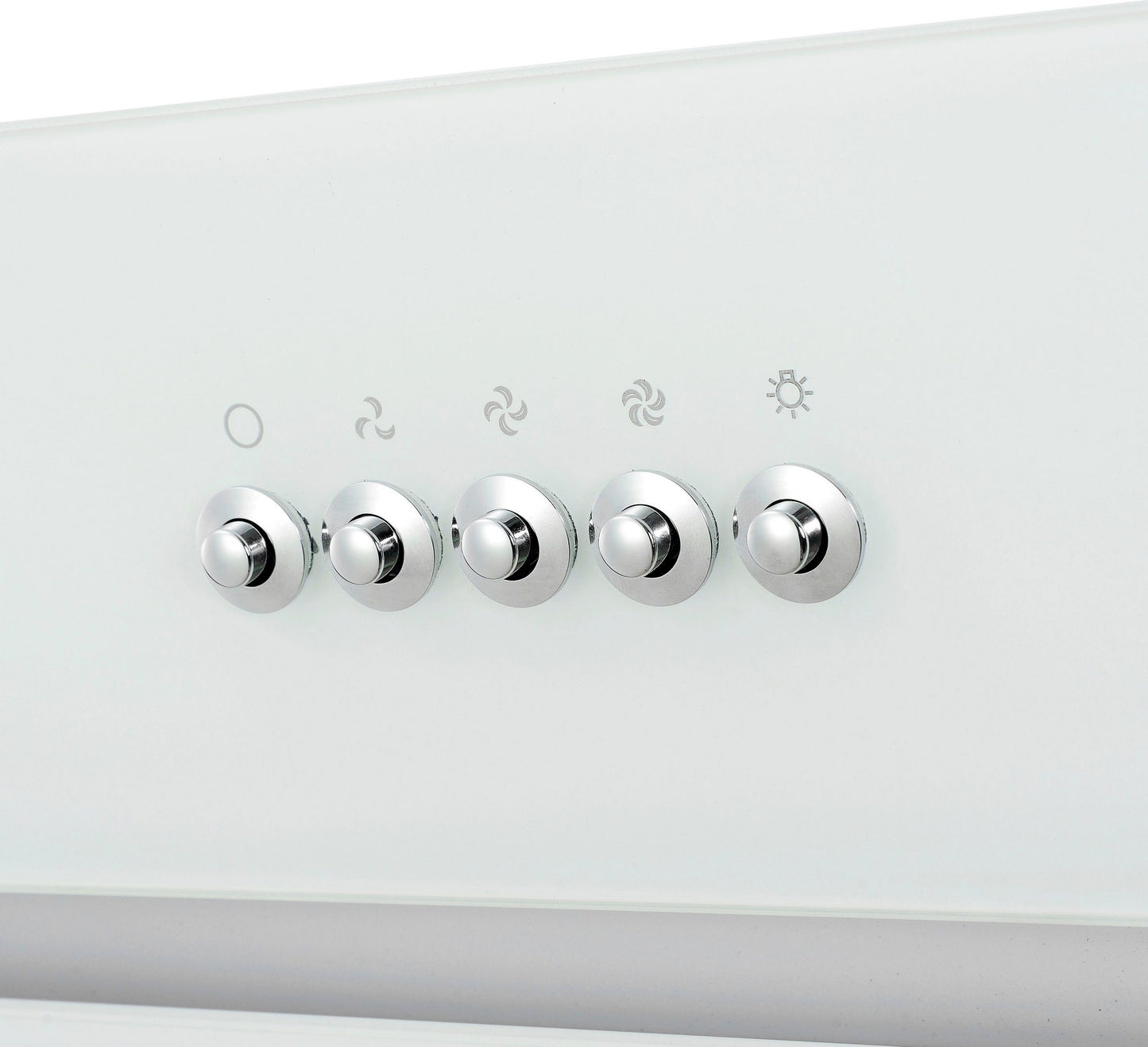

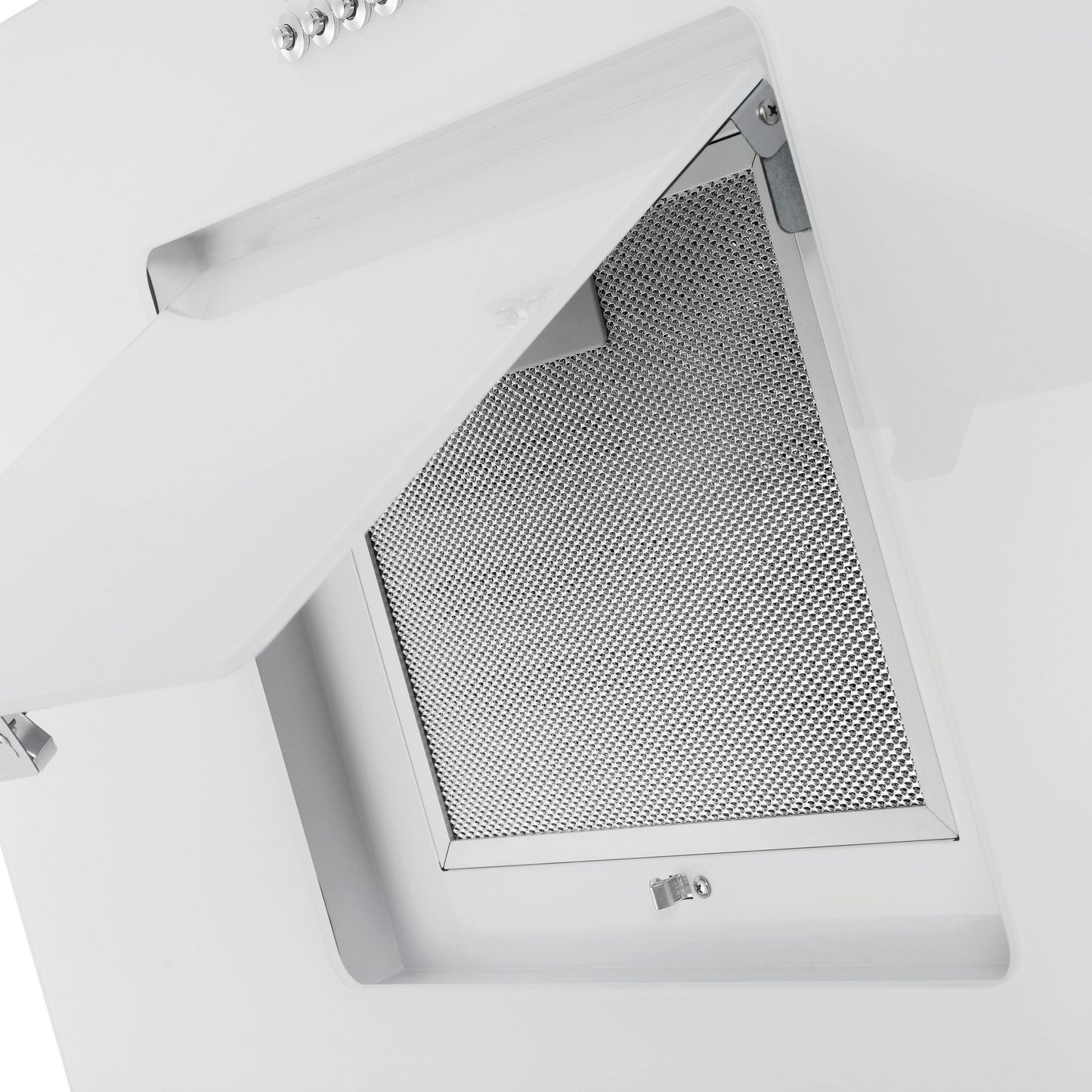

FEATURES & FUNCTIONS Controls Push buttons Type Lighting LED Number of lights directly 2 Number of grease filters 1 Number of fan speeds 3 Grease filter properties washable Material umbrella Glass Housing material steel Material grease filter metal Exhaust system Exhaust air operation, Recirculation mode
Suitable accessories: Activated carbon filter 2 x MIZ 6000, recirculation switch 1 x ULW 1

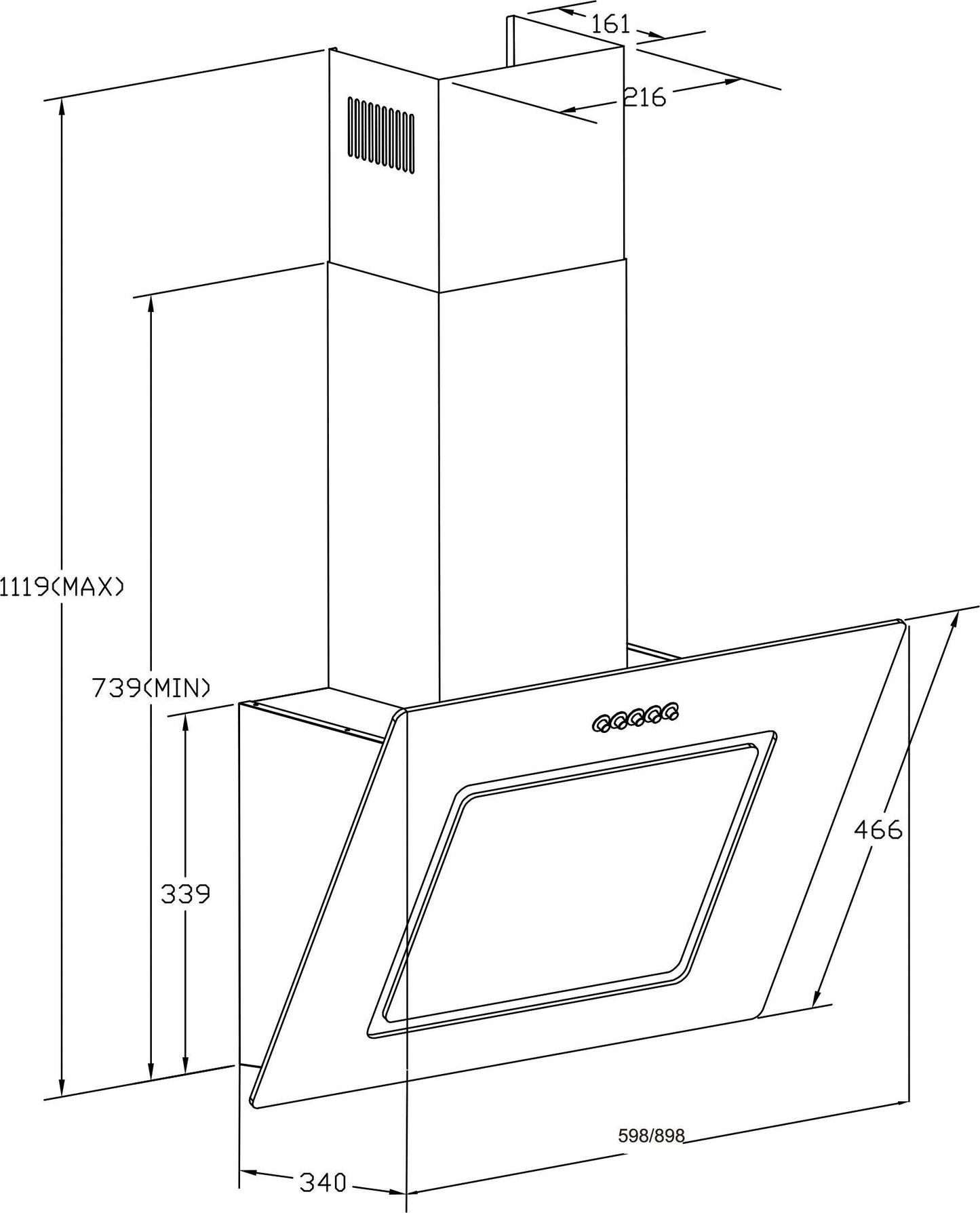

MASS WEIGHT Height 111.9cm Width 59.8cm depth 34cm Weight 9.8kg
